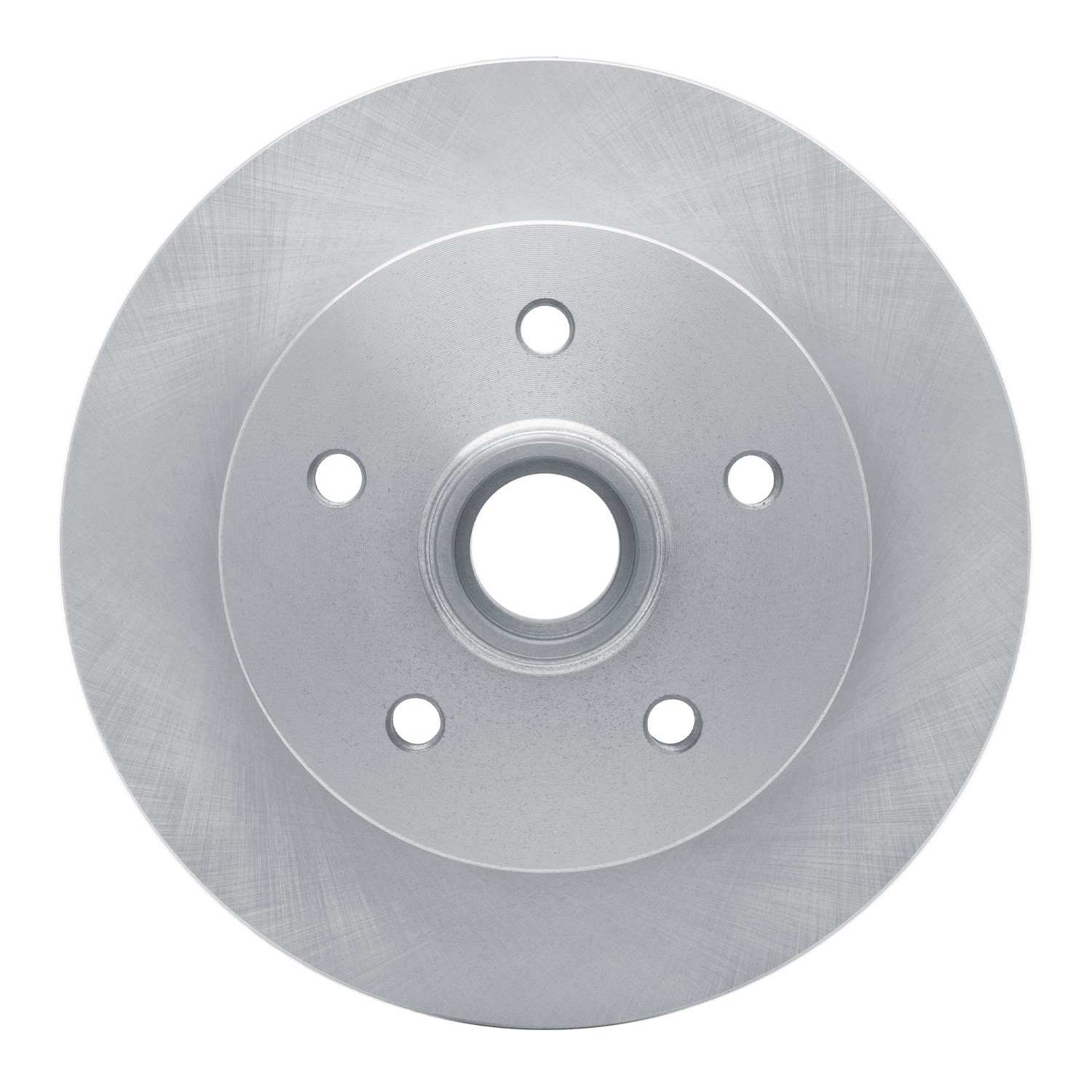

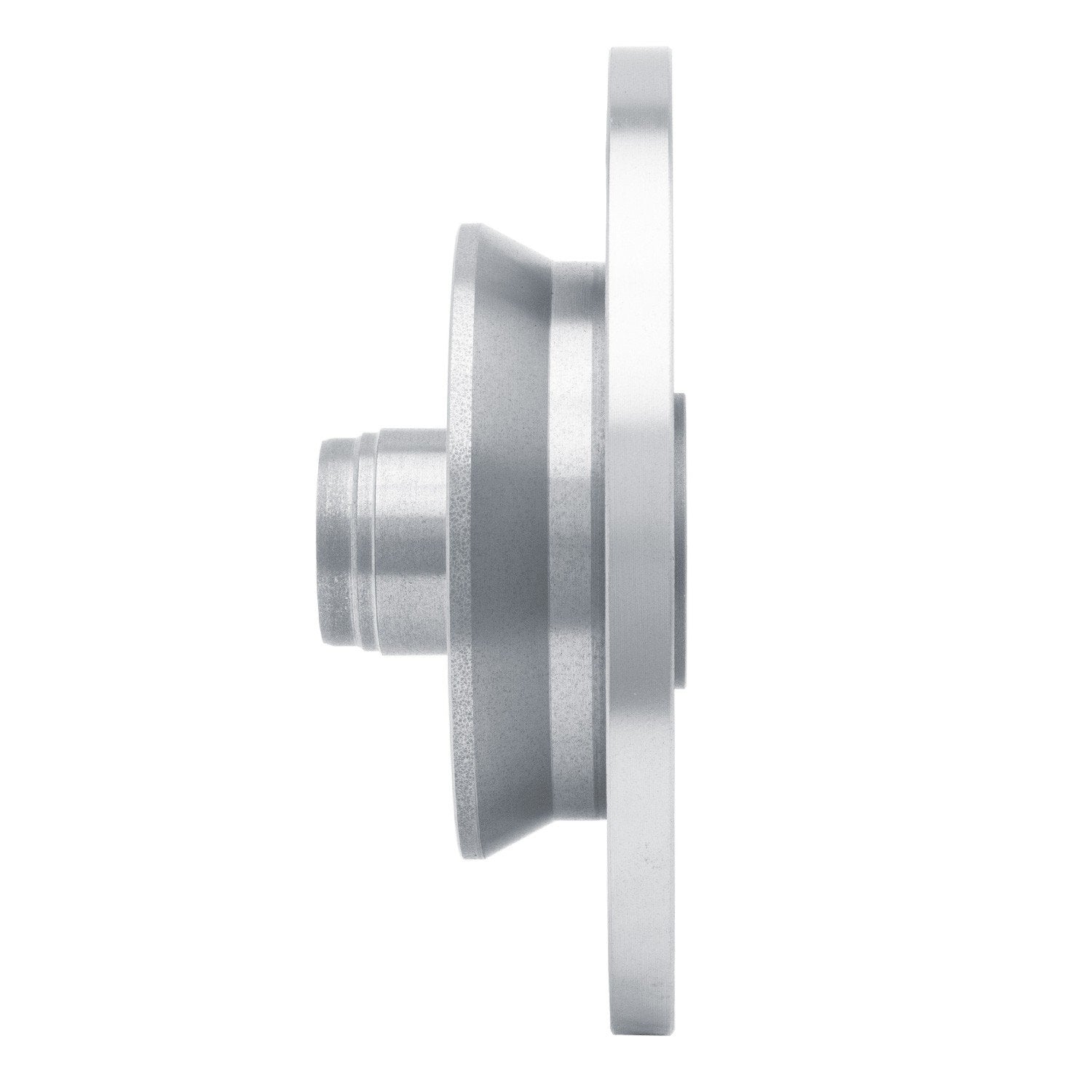

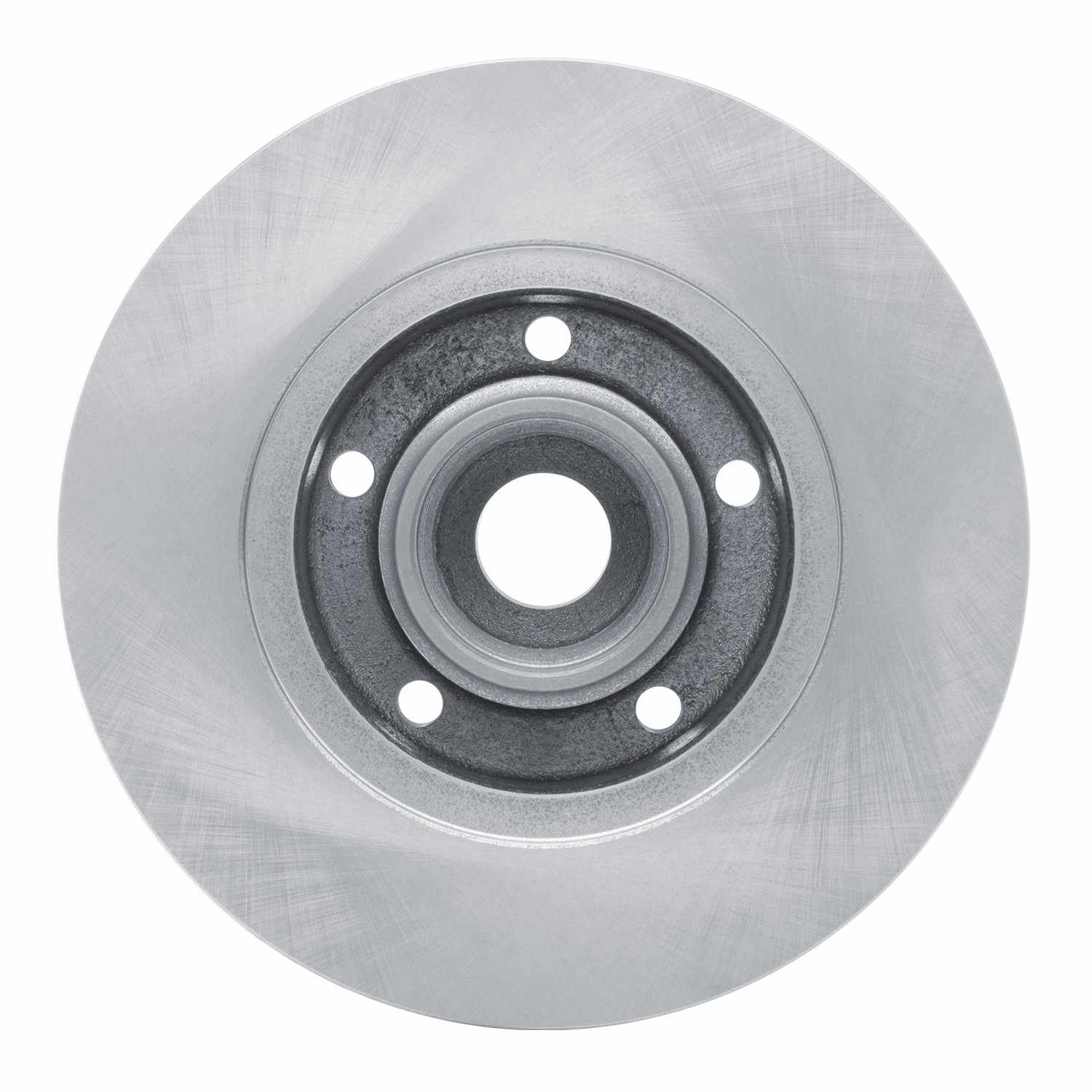

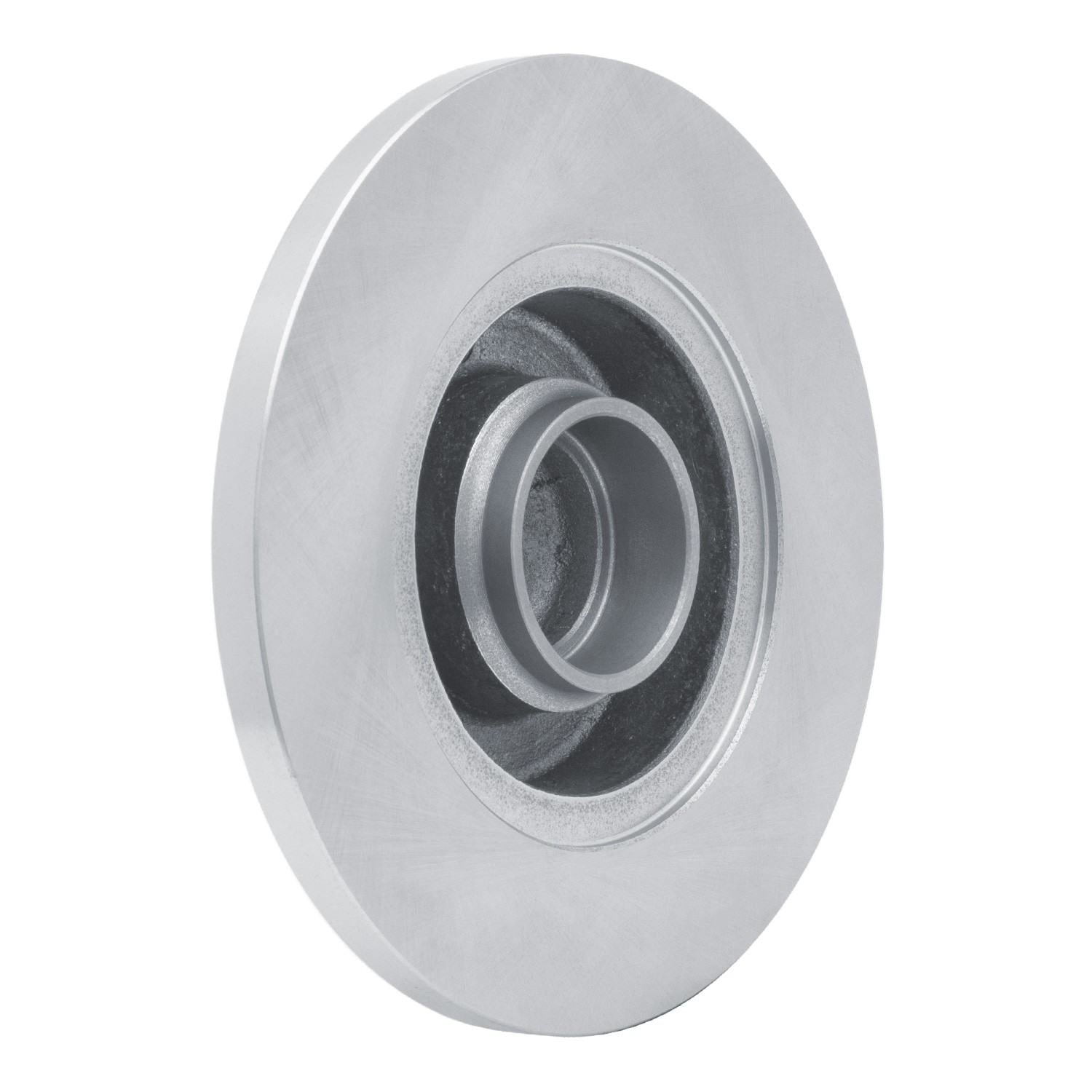

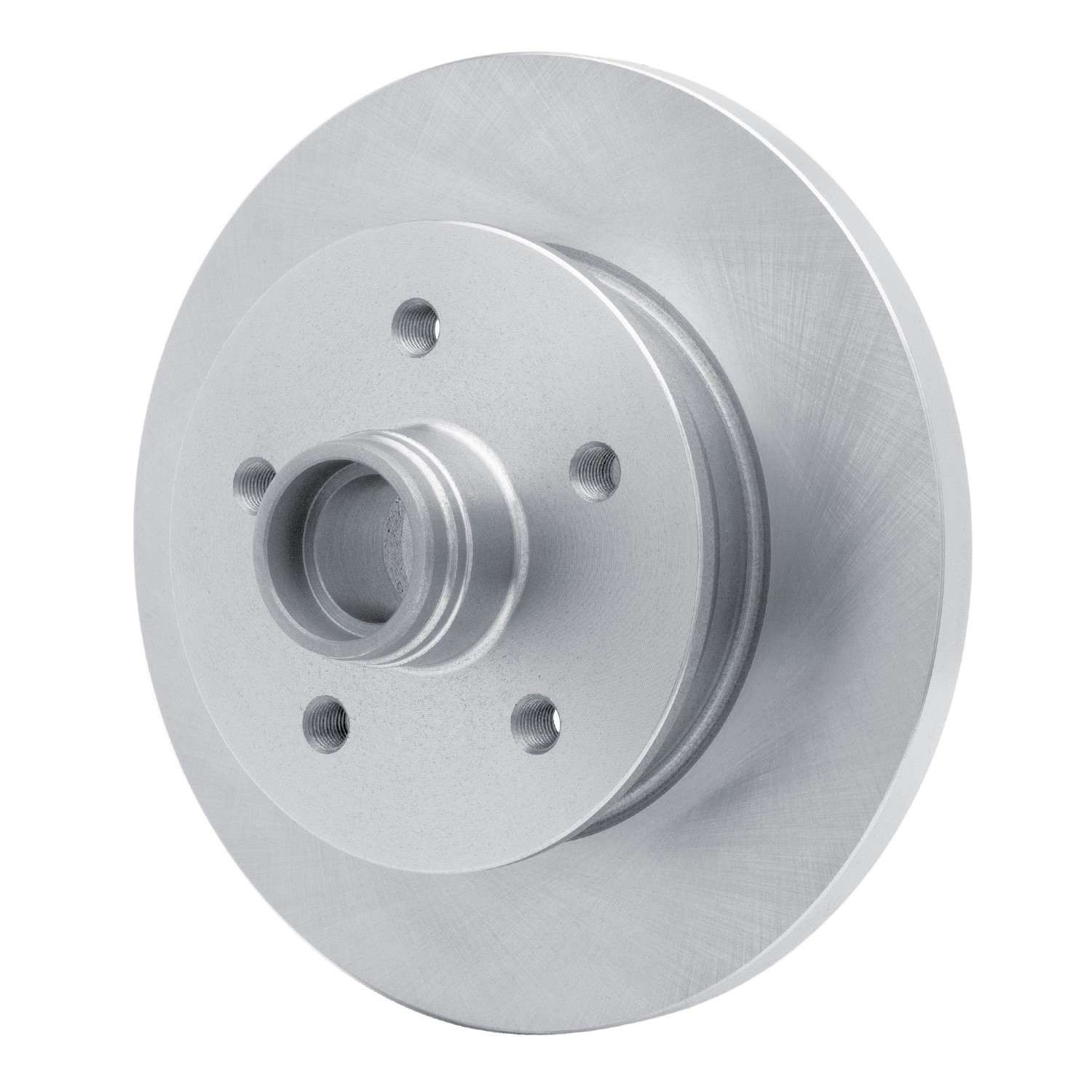

Front Rotor (258x16mm) - VW 2.1L Vanagon

2 needed per van fits Left & Right sides.

OEM technology is getting better and better every year. At DFC, we endeavor to match the latest technologies as applied by the Original Equipment Manufacturers (OEMs).

Next, the castings are sent to our state of the art machining facilities, where each rotor is machined to the tightest tolerances available in the market today. We can guarantee specifications of .010mm disc thickness variation (DTV) and .050mm maximum lateral runout. Though in practice, we regularly achieve .007mm DTV and .025mm maximum lateral runout. Then, the rotors are fine-turned to a maximum of 1.6 RMS. The objective of these strict tolerances is to create the smoothest possible finish, which improves initial break-in due to the increased contact between the pad and the rotor.

After all of the machining processes are completed, each rotor passes a 100% electronic inspection station that measures over 20 attributes to ensure that each rotor meets OE specifications. This further guarantees that each and every rotor delivered to you is trouble free. Coupled with our application-specific DFC brake pads, these rotors provide the best possible braking right out of the box compared to anything else in the market!

Finally, we apply a genuine GEOMET® Finish throughout the entire part, which promises to deliver superior corrosion protection. The GEOMET® coating is processed dry, shipped dry, and ready to install without any additional preparation. An average brake job takes 1.25-2.5 hours per axle. Without the need to clean an oil covered rotor, this saves a tremendous amount of time and money during the installation process. The GEOMET® Finish is simply and safely swept away by the friction material with no harmful effects.

• Ready to Install - No additional additional preparation needed. Saves time and money during intallation process.
• Superior Corrosion Protection - Provides excellent cyclic corrosion performance when tested according to automotive manufacturer's test methods incorporating heat, salt spray (withstands 400 hours), and humidity (SAE J2334, GMW 14872, Ford CEPT: 00.00-L-467, Asian CCT).
• Environmentally Friendly: Meets the following regulations: Environmental Protection Agency (EPA), Chrysler CS-9003, General Motors GMW 3059, Ford WSS-M99P9999-A1 (Hex 9), the EU Directives on End of Life Vehicles (ELV) and Electrical Equipment (RoHS).
• No Toxic Metals: Free of chromium, nickel, cadmium, lead, barium, and mercury.

OE Part #   251-407-617-K / 251407617 K / 251 407 617 K / 251407617K


MFR Part #   600-74039
